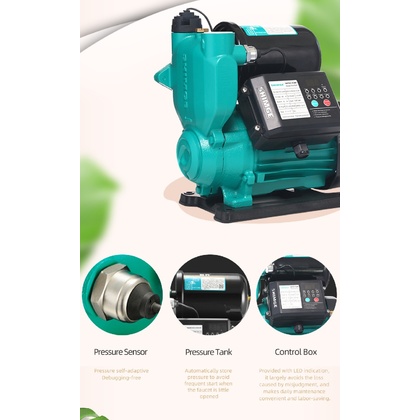

SHIMGE PWF Surface Booster Pumps, Automatic Stop & Run PW125F
Price RM343.00 RM490.00
Product SKU 740066000235
Brand Shimge
Size (L x W x H) 33 cm x 33 cm x 26 cm
Availability In Stock


  • VOLTAGE : 240V
  • POWER : 0.17 W
  • MAX. FLOW (L/M) : 30
  • MAX. HEIGHT (M) : 24
  • HEAD RANGE (M) : 1~18
  • MAX. SUCTION (M) : 6

Product Overview

  • PW-F model equip with digital adjustable pressure function and also come with pressure sensor and flow switch, which means when the pressure sensor was malfunction, the pressure switch alone will still able to start or stop the pumps.


Application Tip:

  • 2 in 1 (Intake and dispense water)
  • Intake Depth : <30 feet
  • Water Pressure : > 25 meter
  • suitable for Deep Well & Boring Water
  • suitable for 2 bathrooms and below
  • suitable for Government water supply because intake will automatically cut off after 3 -4 minutes
  • water pressure will decrease when taps are on silmultaneously


Working Conditions :
The electric pump shall continuously work normally under the following conditions:
1. The environment ambient shall not exceed +40oc;
2. Liquid temperature: 0~+40co; liquid temperature of AWZB and PW: 0~+90oc
3. The PH value of the medium shall be between 6.5 - 8.5;
4. The volume ratio of the solid impurity in the medium shall not exceed 0.1% and the
particle size shall not exceed 0.2mm;
5. The voltage and frequency of the power supply must meet the rated voltage and
frequency on the nameplate of the electric pump; the fluctuation range of the voltage is ±10% of
the rated value.
